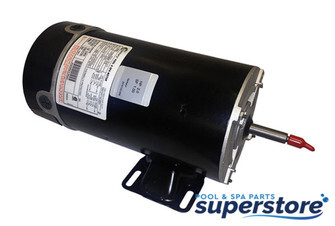

663001363415 A.O. Smith Electrical Products Motor, Century, 2.0hp, 115v/230v, 1-spd

The A.O. Smith BN-40SS is a high-quality electrical motor developed for use in pools and spas. With a power rating of 2.0 horsepower and a speed of 3450 RPM, this motor is skilled in efficiently powering pool pumps and other equipment. AO smith 2 hp pump motor features a 48Y frame and can be utilized at either 115v or 230v, making it versatile and easy to use in a variety of settings. With its reliable performance and long-lasting construction, the AO smith 2 hp pump motor is a great choice for any pool or spa owner looking for a high-quality and reliable motor for their equipment.

Alt. Part Numbers:

SPH20FLC, SPH20FL1, C1456, BN40, 8-186062-01, 7-186097-40, 7-186097-02, 7-186095-02, 7-184518-02, 7-182688-02, 5U164, 5KCR39UN2898X, 193865, 193864, 186887, 186097, 186095, 186062, 184518, 182924, 182798, 182688, 182276, 181579, 181484, 181069, 177778, 17527

Product Specifications

Part Type	Electrical Motor
Manufacturer	AO Smith/Century/Regal Beloit
Motor Type	Spa
Motor Amperage	20.0A/10.0A
Voltage	115v/230v
Phase	1 Phase (1ph)
Frame Type	48Y
Speed	1 Speed (1-Spd)
Horsepower	2.0hp
Total Horsepower	2.0 thp
Motor Shaft Type	Threaded
Motor Style	Thru Bolt
Capacitor On Top	No
Energy Efficiency	Standard
Flange Type	Thru Bolt Mount
Pool Type	Above Ground
Service Factor	1.00 - 1.25
Commonly Used On	Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 Series
HZ	60 Hz
Dimensions	13.33 inches
Dimension Letter	C
Overload Protector	Auto
Stock Number	BN40 or BN40SS
Service Factor	1
RPM	3450 RPM
Motor Name	2 HP BN40 & BN40SS Replacement Pool Motor

Cross References

17257, 182688, 186097, 3410830, 5266EX, 620052, 663001363415, AOSBN40SS, BN-40, BN-40SS, BN40, C1456, SPH20FL1, SPH20FLC1, SPX1520Z1ESC

Prominent Features

12 & 3 O’clock Conduit Entries
40°C Ambient • Class B Insulation
Rotation: CCW Pump End
Through Bolt Mount
48/56 Base Mounting
3-1/2” Shaft Height
Four Thru Bolts on a 5.146 Bolt Circle

Frequently Asked Questions

Is this an OEM part?

Yes, this is an OEM century 2 hp pool pump motor.

When it comes to the AO smith 2 hp pump motor, what is its framework size?

The 48Y frame size of the Century 2 hp pool pump motor BN-40SS is standard in many spa and pool installations.

How does Century 2 hp pool pump motor BN-40SS match up against the competition?

Century 2 hp pool pump motor BN-40SS is widely acknowledged as the industry standard for quality and trustworthiness. The 2.0 horsepower motor and compatibility with both 115v and 230v power origins make it an appealing and practical choice for those in the market for a pool or spa pump.

Is installing a saltwater pool with an A.O. Smith BN-40SS electrical motor possible?

The A.O. Smith BN-40SS electric motor is formed from enduring materials that can withstand the corrosive effects of saltwater, so it can be engaged in both freshwater and saltwater pools.

663001363415 A.O. Smith Electrical Products Motor, Century, 2.0hp, 115v/230v, 1-spd, SF 1.00, 48Y frame BN-40SS BN-40 BN-40SS AOSBN40SS 5268-05 182688
